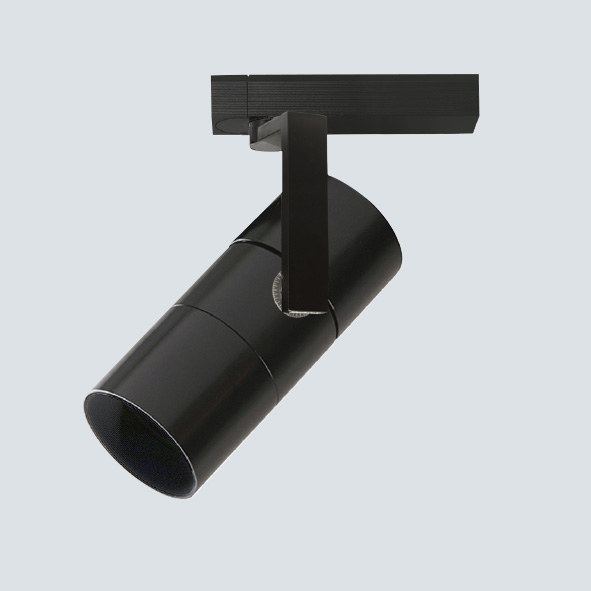

MMP-130S/3H

ModuleX130

MMP-130S/3H

> How to identify

Spotlight
MUSEUM platform model
Ra93typ
Color temperature：2700/3000/3500/4000
Color： White/Matteblack/Silver


・This fixture can be attached to the 3 circuit rails,
   but only 1circuit can be used for power supply.
・Please do not attach the fixture to the 3 circuit rails in
   which more than 1 circuit are occupied for power supply.
    It may cause tripping the circuit breaker.


EUTRAC type
・3 circuit surface-mounted track (～220V)
http://www.eutrac.de/3/1/en/products/～3_surface_track_standard

・3 circuit surface-mounted track with data bus (～220V)
http://www.eutrac.de/3/22/en/products/～3_surface_track_+_data_bus

・Track Accessories
http://www.eutrac.de/media/pdf/USA_2015_Internet.pdf

Nordic type
type XTSC 6 NORDIC ALUMINIUM INC

  • MMP-130S/3H white
  • MMP-130S/3H silver

Products Specifications

Input Voltage *reference data
220V±6%
Power consumption *reference data
55.0W（220V）
Luminance flux *reference data
4161～4577lm
Color rendering
(Typical data)
Ra93typ
Color temperature
2700～
4000K
Light distrobution
Medium.Narrow
Input current *reference data
0.272A
Fixture's weight
1.1kg
Aiming distance
0.3m
Tilting angle
100°
Glare cut off
angle
-
Filter lighting®
2
Ceiling thickness
-
Dimming
-

Data Download

Specification Sheet/ Installation Guide/ Product Specification Sheet Fixture Drawing/CAD Data IES Data
MMP-130S/3H Specification Sheet MMP-130S/3H CAD Data MMP-130S/3H IES Data
Specification Sheet_EUTRAC
PDF Specification Sheet_NORDIC
PDF Installation Guide_EUTRAC
PDF Installation Guide_NORDIC
PDF Product specification sheet
JPG 		EUTRAC
DXF NORDIC
DXF 		Narrow
ies Medium
ies
NORDIC 0-10V
Light DistributionFlame Color 2700K 3000K 3500K 4000K
Medium white MMP-130S/3H/W/1N/M/40B27/Z2/3
-		 MMP-130S/3H/W/1N/M/40B30/Z2/3
-		 MMP-130S/3H/W/1N/M/40B35/Z2/3
-		 MMP-130S/3H/W/1N/M/40B40/Z2/3
-
silver MMP-130S/3H/S/1N/M/40B27/Z2/3
-		 MMP-130S/3H/S/1N/M/40B30/Z2/3
-		 MMP-130S/3H/S/1N/M/40B35/Z2/3
-		 MMP-130S/3H/S/1N/M/40B40/Z2/3
-
matt black MMP-130S/3H/M/1N/M/40B27/Z2/3
-		 MMP-130S/3H/M/1N/M/40B30/Z2/3
-		 MMP-130S/3H/M/1N/M/40B35/Z2/3
-		 MMP-130S/3H/M/1N/M/40B40/Z2/3
-
Narrow white MMP-130S/3H/W/1N/N/40B27/Z2/3
-		 MMP-130S/3H/W/1N/N/40B30/Z2/3
-		 MMP-130S/3H/W/1N/N/40B35/Z2/3
-		 MMP-130S/3H/W/1N/N/40B40/Z12/3
-
silver MMP-130S/3H/S/1N/N/40B27/Z2/3
-		 MMP-130S/3H/S/1N/N/40B30/Z2/3
-		 MMP-130S/3H/S/1N/N/40B35/Z2/3
-		 MMP-130S/3H/S/1N/N/40B40/Z2/3
-
matt black MMP-130S/3H/M/1N/N/40B27/Z2/3
-		 MMP-130S/3H/M/1N/N/40B30/Z2/3
-		 MMP-130S/3H/M/1N/N/40B35/Z2/3
-		 MMP-130S/3H/M/1N/N/40B40/Z2/3
-
EUTRAC 0-10V
Light DistributionFlame Color 2700K 3000K 3500K 4000K
Medium white MMP-130S/3H/W/1E/M/40B27/Z2/3
-		 MMP-130S/3H/W/1E/M/40B30/Z2/3
-		 MMP-130S/3H/W/1E/M/40B35/Z2/3
-		 MMP-130S/3H/W/1E/M/40B40/Z2/3
-
silver MMP-130S/3H/S/1E/M/40B27/Z2/3
-		 MMP-130S/3H/S/1E/M/40B30/Z2/3
-		 MMP-130S/3H/S/1E/M/40B35/Z2/3
-		 MMP-130S/3H/S/1E/M/40B40/Z2/3
-
matt black MMP-130S/3H/M/1E/M/40B27/Z2/3
-		 MMP-130S/3H/M/1E/M/40B30/Z2/3
-		 MMP-130S/3H/M/1E/M/40B35/Z2/3
-		 MMP-130S/3H/M/1E/M/40B40/Z2/3
-
Narrow white MMP-130S/3H/W/1E/N/40B27/Z2/3
-		 MMP-130S/3H/W/1E/N/40B30/Z2/3
-		 MMP-130S/3H/W/1E/N/40B35/Z2/3
-		 MMP-130S/3H/W/1E/N/40B40/Z12/3
-
silver MMP-130S/3H/S/1E/N/40B27/Z2/3
-		 MMP-130S/3H/S/1E/N/40B30/Z2/3
-		 MMP-130S/3H/S/1E/N/40B35/Z2/3
-		 MMP-130S/3H/S/1E/N/40B40/Z2/3
-
matt black MMP-130S/3H/M/1E/N/40B27/Z2/3
-		 MMP-130S/3H/M/1E/N/40B30/Z2/3
-		 MMP-130S/3H/M/1E/N/40B35/Z2/3
-		 MMP-130S/3H/M/1E/N/40B40/Z2/3
-
