ModuleX100

MMP-100A/20A/S1

> How to identify

Adjustable downlight
MUSEUM platform
Spectrum modulation model

Aperture for installation：φ100
Equivalent to 2700K, Equivalent to 5000K : Ra94typ
Equivalent to 4000K : Ra96typ
Color temperature：2700～5000K
Cone： WC/MC/CC
* Please check the specification sheet regarding the driver matches to the lighting fixture.

  • MMP-100A/20A/S1 white
  • MMP-100A/20A/S1 white
  • MMP-100A/20A/S1 matte black
  • MMP-100A/20A/S1 white
  • MMP-100A/20A/S1 matte black

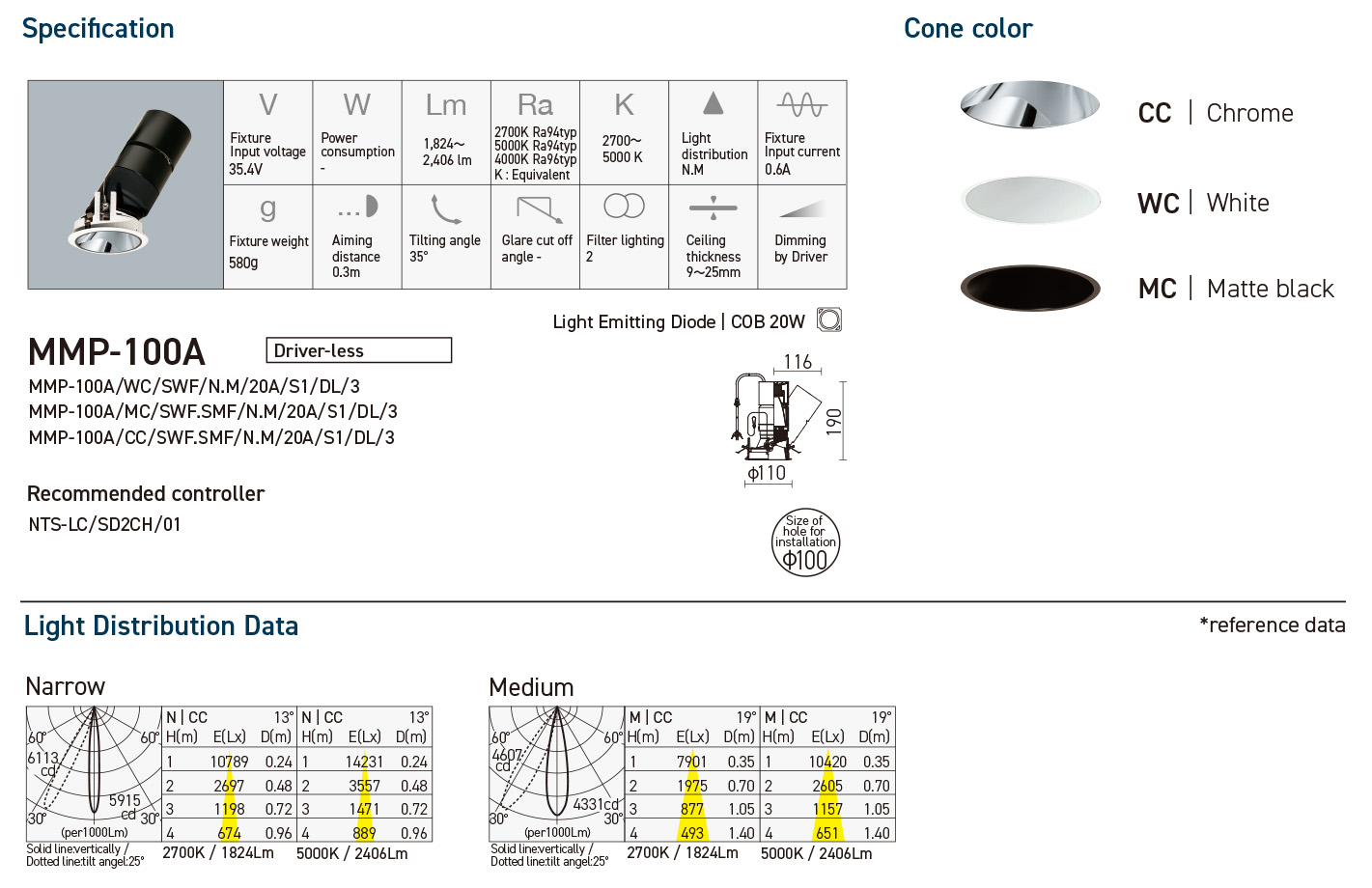

Products Specifications

Input Voltage *reference data
Driverless:35.4V
Power consumption *reference data
-
Luminance flux *reference data
1824～2406lm
Color rendering
(Typical data)
Equivalent to 2700K, Equivalent to 5000K Ra94typ / Equivalent to 4000K Ra96typ
Color temperature
2700-5000K

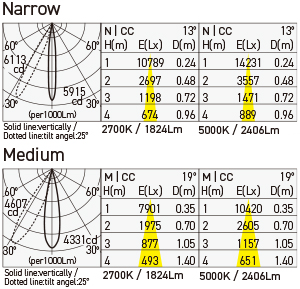

Light distrobution
Medium.Narrow
Input current *reference data
Driverless:0.6A
Fixture's weight
Driverless;580g
Aiming distance
0.3m
Tilting angle
35°
Glare cut off
angle
-
Filter lighting®
2
Ceiling thickness
9～25mm
Dimming
-

Data Download

Specification Sheet/ Installation Guide/ Product Specification Sheet Fixture Drawing/CAD Data IES Data
MMP-100A/20A/S1 Specification Sheet MMP-100A/20A/S1 CAD Data MMP-100A/20A/S1 IES Data

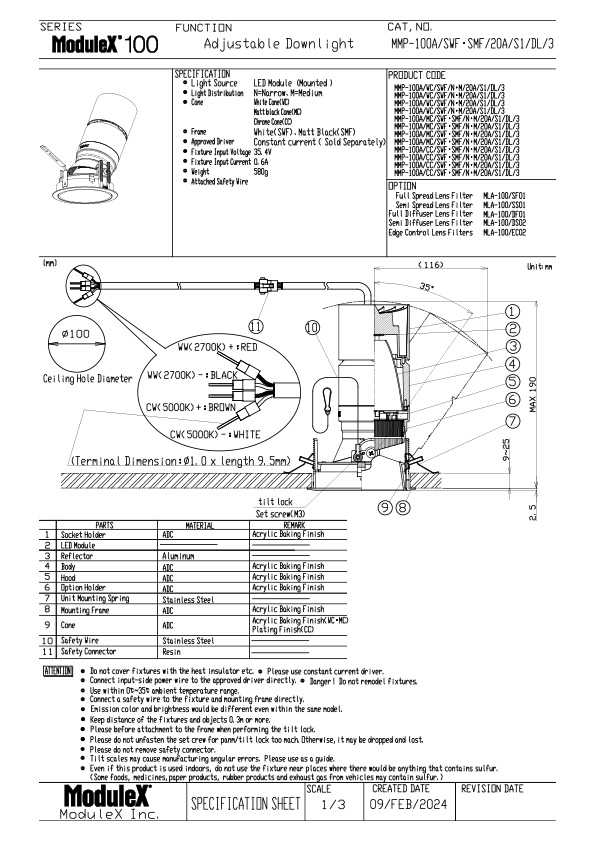

specification sheet
PDF Installation Guide
PDF Product specification sheet
JPG 		Frame
DXF 		CC_Narrow
ies MC_Narrow
ies WC_Narrow
ies CC_Medium
ies MC_Medium
ies WC_Medium
ies
Driverless
Light DistributionCorn ColorFlame Color 2700-5000K
Medium white white MMP-100A/WC/SWF/M/20A/S1/DL/3
-
matte black white MMP-100A/MC/SWF/M/20A/S1/DL/3
-
matte black MMP-100A/MC/SMF/M/20A/S1/DL/3
-
chrome white MMP-100A/CC/SWF/M/20A/S1/DL/3
-
matte black MMP-100A/CC/SMF/M/20A/S1/DL/3
-
Narrow white white MMP-100A/WC/SWF/N/20A/S1/DL/3
-
matte black white MMP-100A/MC/SWF/N/20A/S1/DL/3
-
matte black MMP-100A/MC/SMF/N/20A/S1/DL/3
-
chrome white MMP-100A/CC/SWF/N/20A/S1/DL/3
-
matte black MMP-100A/CC/SMF/N/20A/S1/DL/3
-
